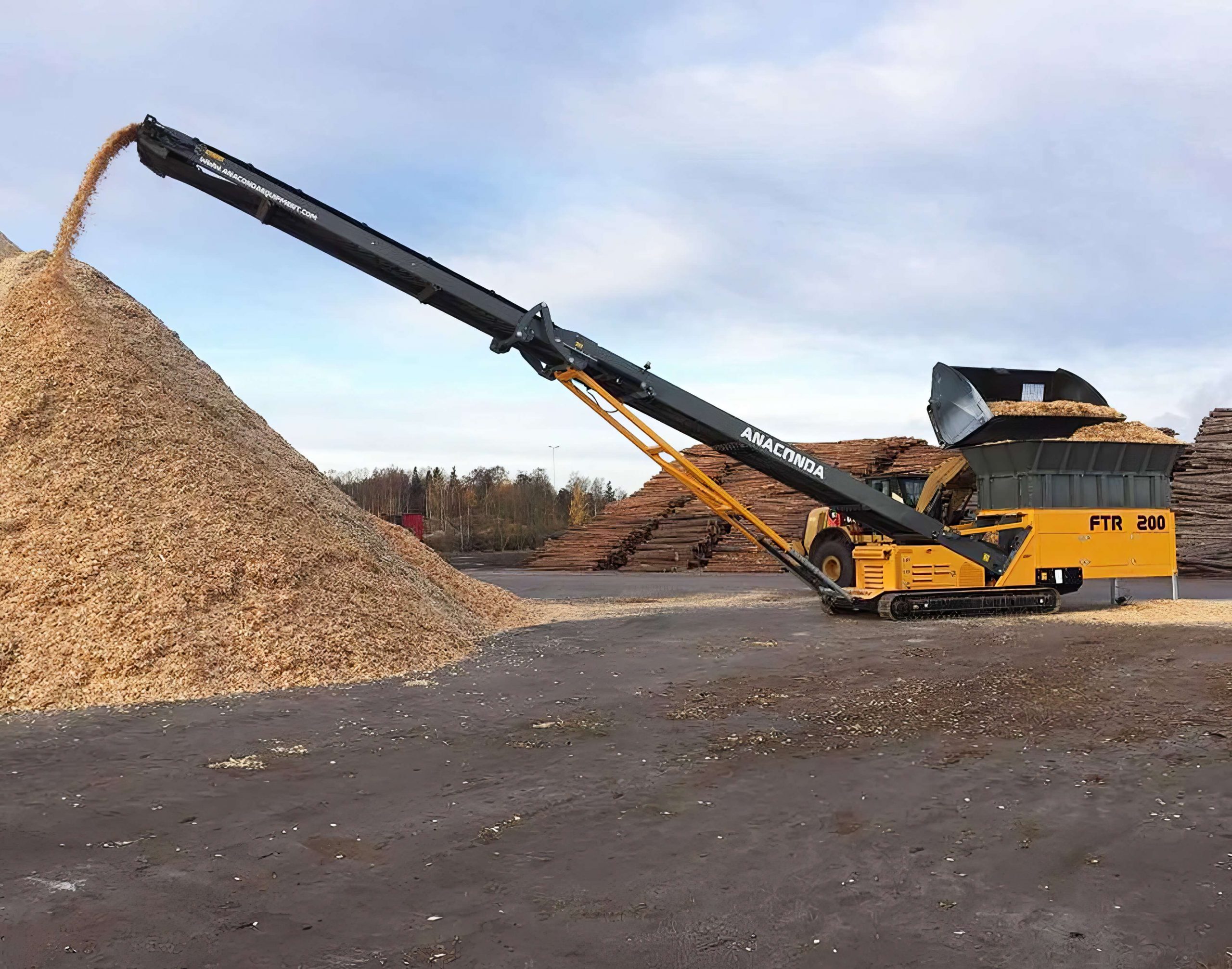

The FTR200 is the largest in the Feeding Conveyor range with a 20 m (66') stockpiling conveyor. It offers the ability to create stockpiles or load barges/trucks with ease.
The Anaconda FTR200 Feeding Conveyor is a variable speed conveyor capable of processing sand, gravel, aggregates, compost, coal and wood chips. The FTR200 is the largest in the Feeding Conveyor range with a length of 20 m (66’) and a hopper capacity of 13 m³ (17 yd³). The unit can be fitted with an overband magnet to enhance stockpile quality and be used as a screen with the addition of a double deck vibrating grid to scalp away oversize material. The FTR200 can also operate as a mulcher with the optional mulching drum kit.
| Model | Power Units | Emission Tier |
| Deutz 2011 | 49 kW (66 HP) | Tier 3 |
| JCB 444 DieselMAX | 63 kW (84 HP) | Tier 3 |
| JCB 444 EcoMAX | 55 kW (74 HP) | Tier 4F |
| JCB 430 DieselMAX | 55 kW (74 HP) | Stage V |
| Deutz 2.9 L4 | 50 kW (67 HP) | Stage V |
| CAT C2.8 | 55 kW (74 HP) | Stage V |
Tier 3/Stage 3a: Rest of World | Tier 4 Final: US, CA, JP, KR, AU (opt.) | Stage V : JCB – EU/UK; CAT – EU/UK/US
| Height | 8.97 m |
| Length | 22.49 m |
| Width | 2.55 m |
| Weight (Vibrating grid) | 18,985 kg |
| Hopper capacity | 13 m³ |
| Height | 29′ 4″ |
| Length | 73′ 8″ |
| Width | 8′ 3″ |
| Weight (Vibrating grid) | 41,854 lbs |
| Hopper capacity | 17 yd³ |
