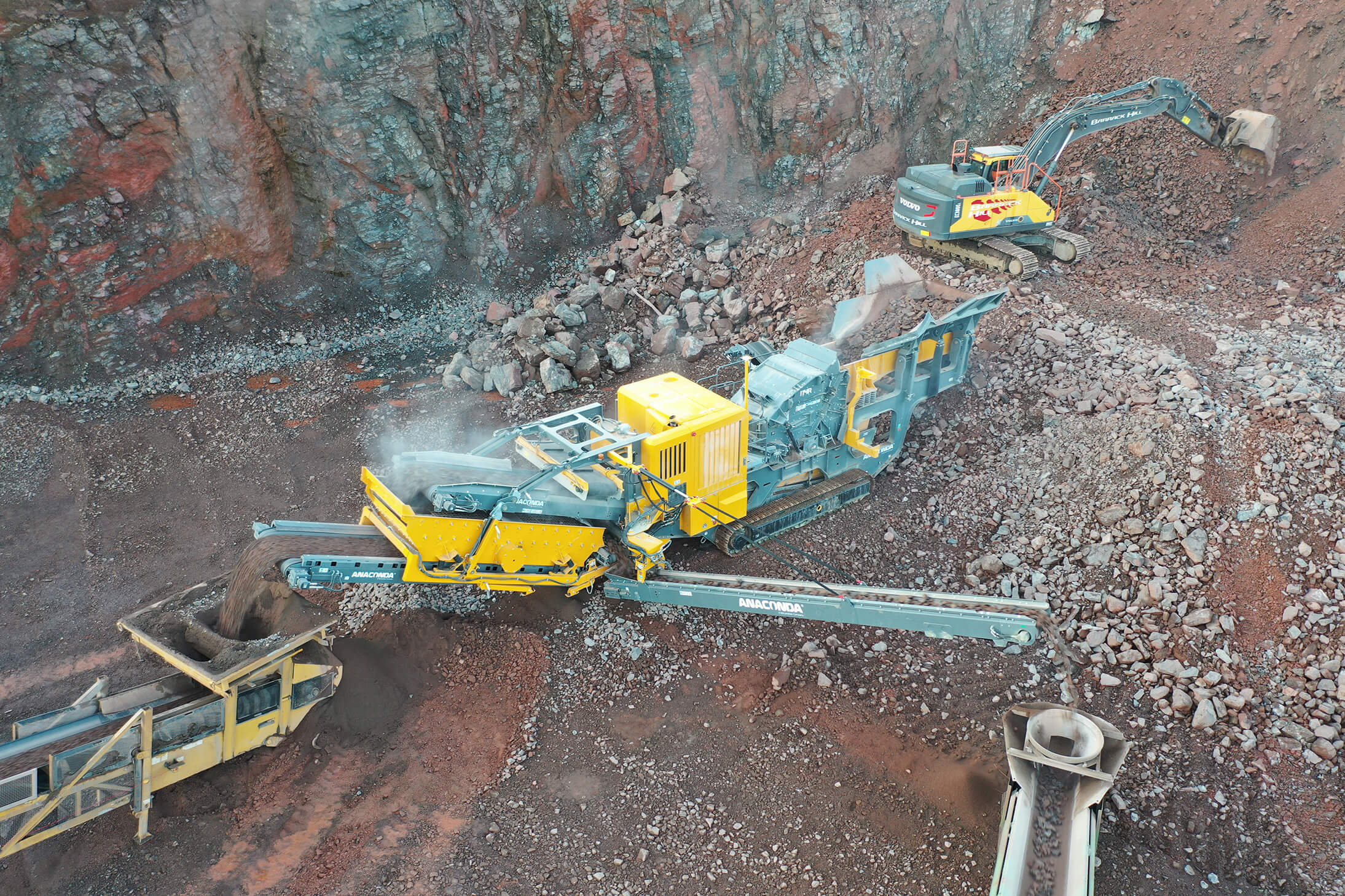

Introducing the I14: The Latest Impact Crusher from Anaconda
The Anaconda I14 Impact Crusher is engineered for operators who need high performance, configuration flexibility, and fast, hassle-free transport. Designed with rental fleets and contract crushing operations in mind, the I14 Impact Crusher delivers precise material control, while remaining easy to move between sites.
Recirculating Screen for Controlled Final Product
The I14R is equipped with a recirculating screen with both a 4.27 m x 1.83 m (14 ft x 6 ft) top and a matching 4.27 m x 1.83 m (14 ft x 6 ft) bottom deck, allowing operators to efficiently size material and return oversize back to the chamber for additional reduction. This setup improves final product consistency and reduces the need for external screening equipment.
Rotor Options to Suit the Application
To match the machine to the application, the I14R can be equipped with either a three bar or four bar rotor. Operators can balance throughput, reduction and wear characteristics based on the job at hand, ensuring optimal performance across a range of materials.
Optional Third Apron for Extremely Tight Material
For applications that require exceptionally fine control, the I14R offers an optional third apron. This feature allows the machine to produce extremely tight material sizing without compromising productivity.
Feeder Options With or Without Independent Prescreen
The I14R can be supplied with or without an independent prescreen on the feeder:
• With a prescreen: Fines are removed before reaching the chamber, reducing wear and increasing efficiency.
• Without a prescreen: The machine remains simple and streamlined for applications where pre separation is not necessary.
This flexibility ensures operators can configure the I14R to fit their exact requirements rather than relying on a one size fits all design.
Under 125,000 lbs. for Permit-Free Transport
One of the most significant advantages of the I14R is its total transport weight. The entire machine remains under 125,000 lbs (56,700 kg), a critical threshold in North America that allows the crusher to be shipped without special transport permits.
This is especially important in a rental-driven market where equipment must be moved quickly and frequently. Staying under this weight limit makes the I14R faster, easier and more cost-effective to transport, giving machine operators a clear advantage over competing machines that exceed transport limits.
Proven Universal Crushing Chamber
At the core of the I14R is the industry-proven McLanahan Universal impact crushing chamber. Backed by over a century of crushing experience, with hundreds of impact crushers operating worldwide, this chamber delivers reliable performance and consistent results across a wide range of applications.
Built for Modern, Mobile Crushing Operations
With multiple configuration options, tight material control and a transport-friendly design, the I14R is purpose-built for today’s crushing environments. It combines proven technology with practical engineering to meet the needs of contractors, recyclers and rental fleets that demand performance without compromise.
