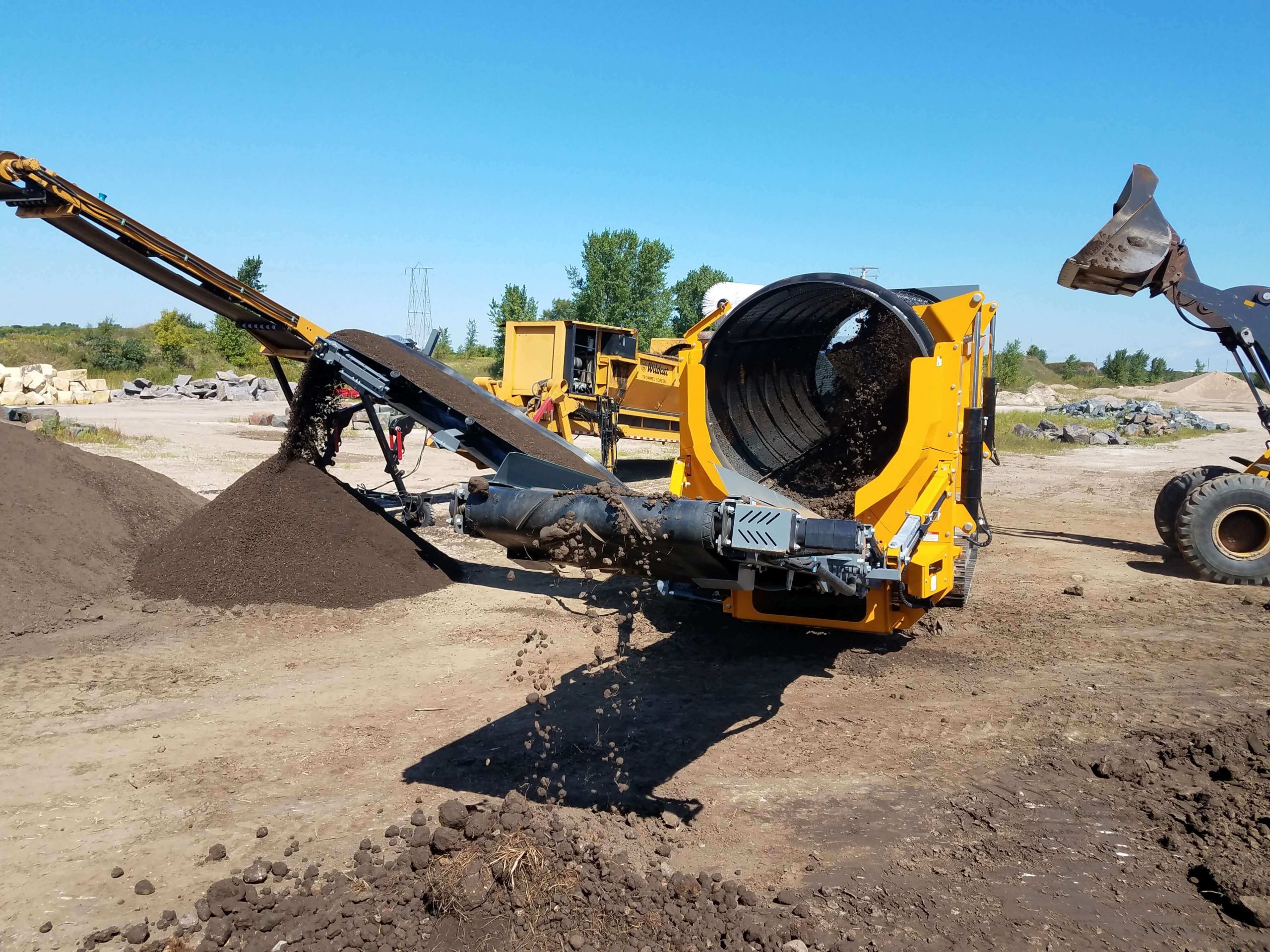

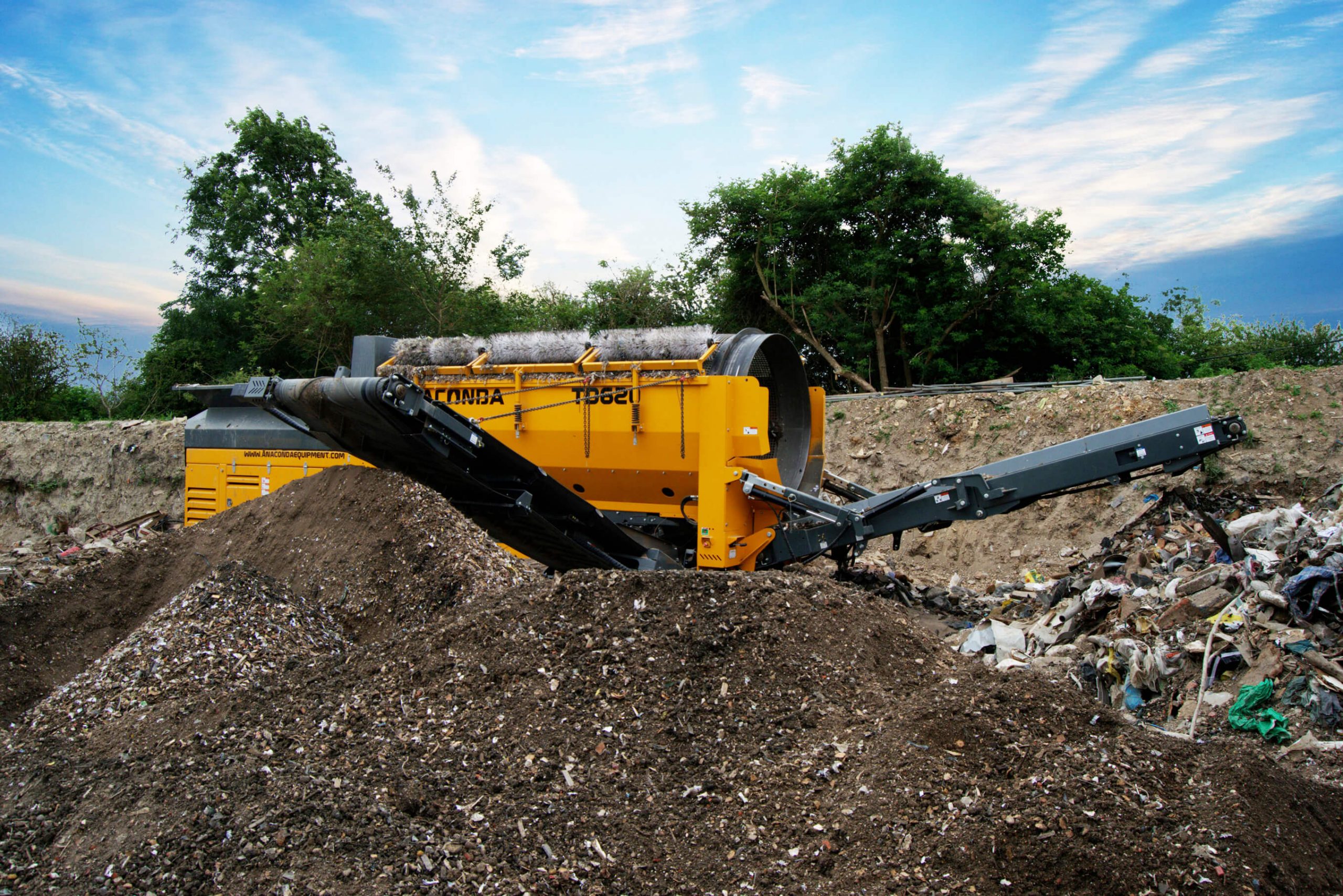

The Anaconda TD620 Trommel Screen is a robust primary screening solution that ensures optimum levels of productivity, capable of processing up to 200 tph (220 US tph).
The Anaconda TD620 Trommel Screen is a robust primary screening solution for operators looking to process a range of organic materials such as topsoil, sand, shredded waste, aggregate, dolomite and compost. The TD620 can process up to 200 tph (220 US tph) with a max feed size of 300 mm (12”) and max screen size of 75mm (3”). The Trommel Screen range has been designed with a lift bar system to effectively cut through wet materials and prevent build-up in the drum.
| Model | Power Units | Emission Tier |
| CAT 4.4 LRC | 74.5 kW (100 HP) | Tier 3 |
| JCB 444 DieselMAX | 85 kW (114 HP) | Tier 3/Stage 3a |
| JCB 444 EcoMax | 93 kW (125 HP) | Tier 4 Final |
| CAT C3.6 | 100 kW (134 HP) | Stage V |
Tier 3/Stage 3a: Rest of World | Tier 4 Final: US, CA, JP, KR, AU (opt.) | Stage V: JCB – EU/UK; CAT – EU/UK/US
| Height | 3.74 m |
| Length | 13.85 m |
| Width | 6.90 m |
| Weight | 20,000 kg |
| Hopper capacity | 9.6 m³ |
| Screen angle | 0° – 6° |
| Screen drum length | 5.5 m |
| Screen drum diameter | 2 m |
| Height | 12′ 3″ |
| Length | 45′ 4″ |
| Width | 22′ 6″ |
| Weight | 44,000 lbs |
| Hopper capacity | 12.6 yd³ |
| Screen angle | 0° – 6° |
| Screen drum length | 18′ |
| Screen drum diameter | 6′ 5″ |
