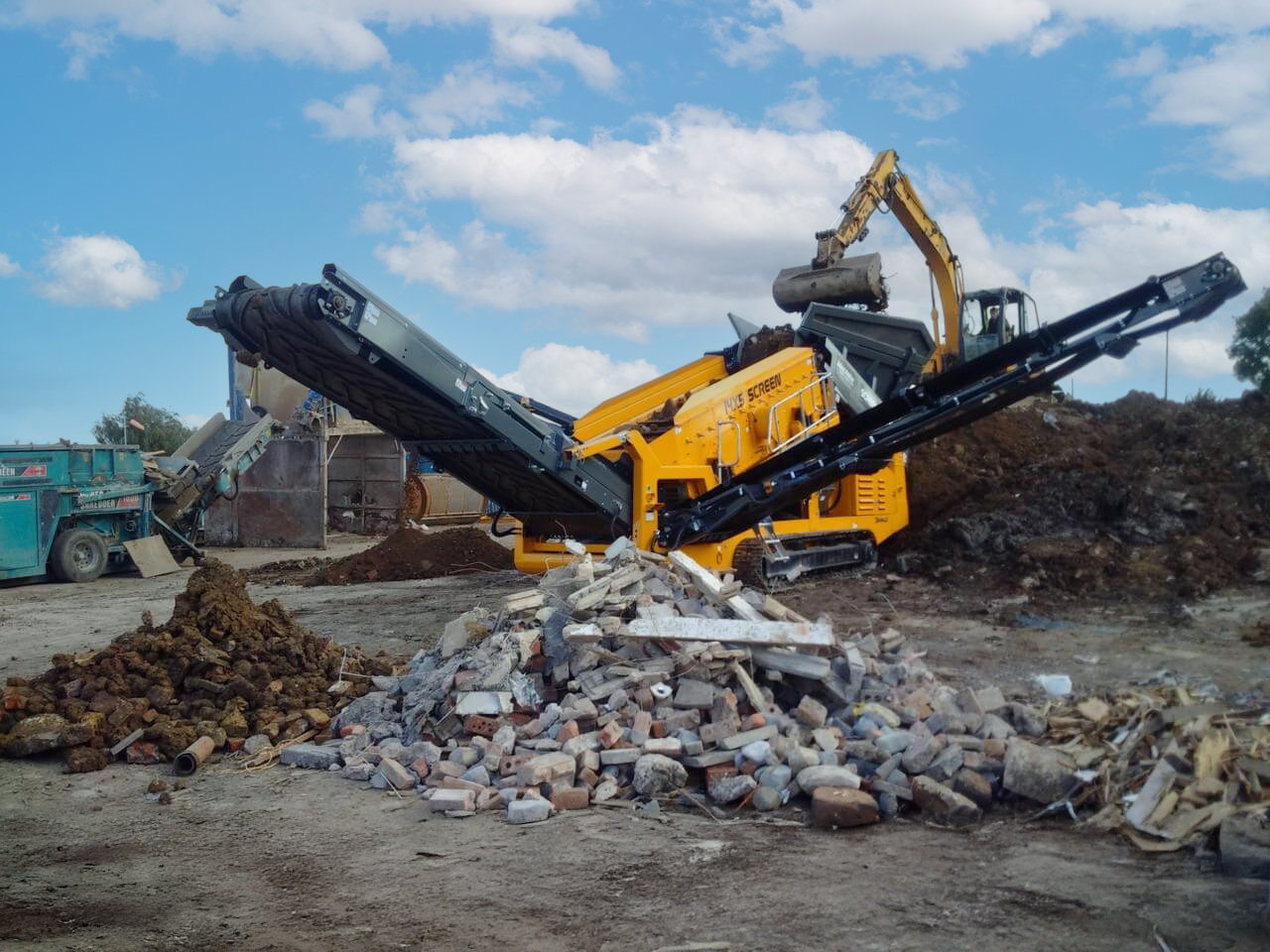

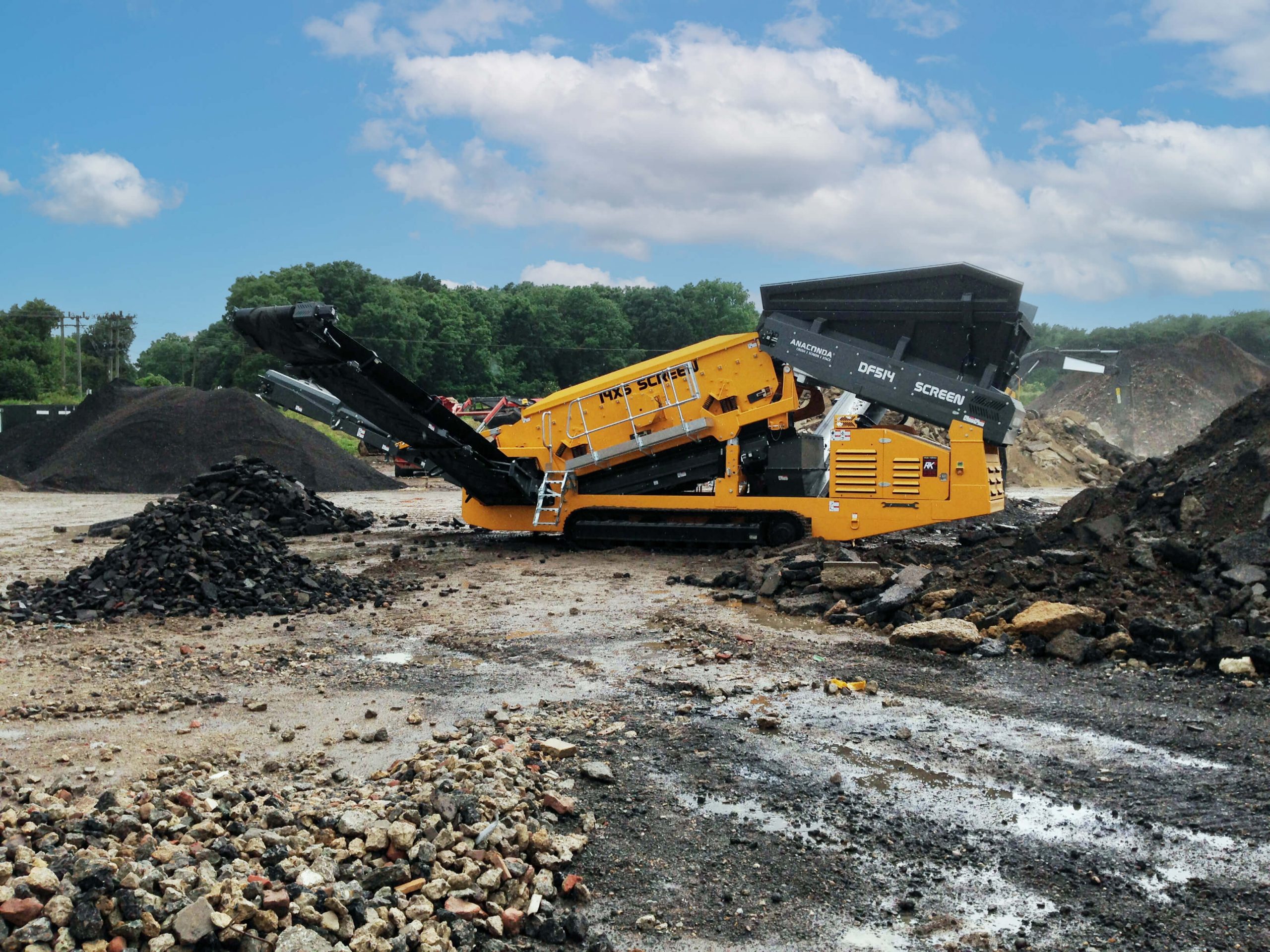

The Anaconda DF514 Scalping Screen has been designed to adapt to the toughest screening conditions.
The Anaconda DF514 Scalping Screen is a primary screen with the ability to process up to 350 tph (386 US tph), designed to suit materials such as road waste, rock, road subbase, demolition waste, overburden and aggregates. The DF514 features a 4.27 m x 1.52 m (14’ x 5’) screen box and comes equipped with a hydraulically folding hopper, main conveyor and two stockpile conveyors for stockpiling up to 3 products. Designed for versatility, the DF514 accepts a max feed size of 300 mm (12”) and offers variable speed control across all conveyors for optimised material handling.
| Model | Power Units | Emission Tier |
| CAT 4.4 | 74.5 kW (100 HP) | Tier 3 |
| JCB 444 DieselMAX | 85 kW (115 HP) | Tier 3 |
| JCB 444 EcoMAX IPU | 93 kW (125 HP) | Tier 4 Final |
| CAT 3.6 | 100 kW (134 HP) | Stage V |
| JCB 444 DieselMAX | 97 kW (130 HP) | Stage V |
Tier 3/Stage 3a: Rest of World | Tier 4 Final: US, CA, JP, KR, AU (opt.) | Stage V: JCB – EU/UK; CAT – EU/UK/US
| Height | 4.40 m |
| Length | 13.60 m |
| Width | 13.90 m |
| Weight | Apron feed – 27,500 kg Belt feed – 24,300 kg |
| Hopper capacity | 7.2 m³ |
| Screen box angle | 15° – 19° |
| Height | 14′ 7″ |
| Length | 44′ 6″ |
| Width | 45′ 6″ |
| Weight | Apron feed – 60,627 lbs Belt feed – 53,572 lbs |
| Hopper capacity | 9.4 yd³ |
| Screen box angle | 15° – 19° |
