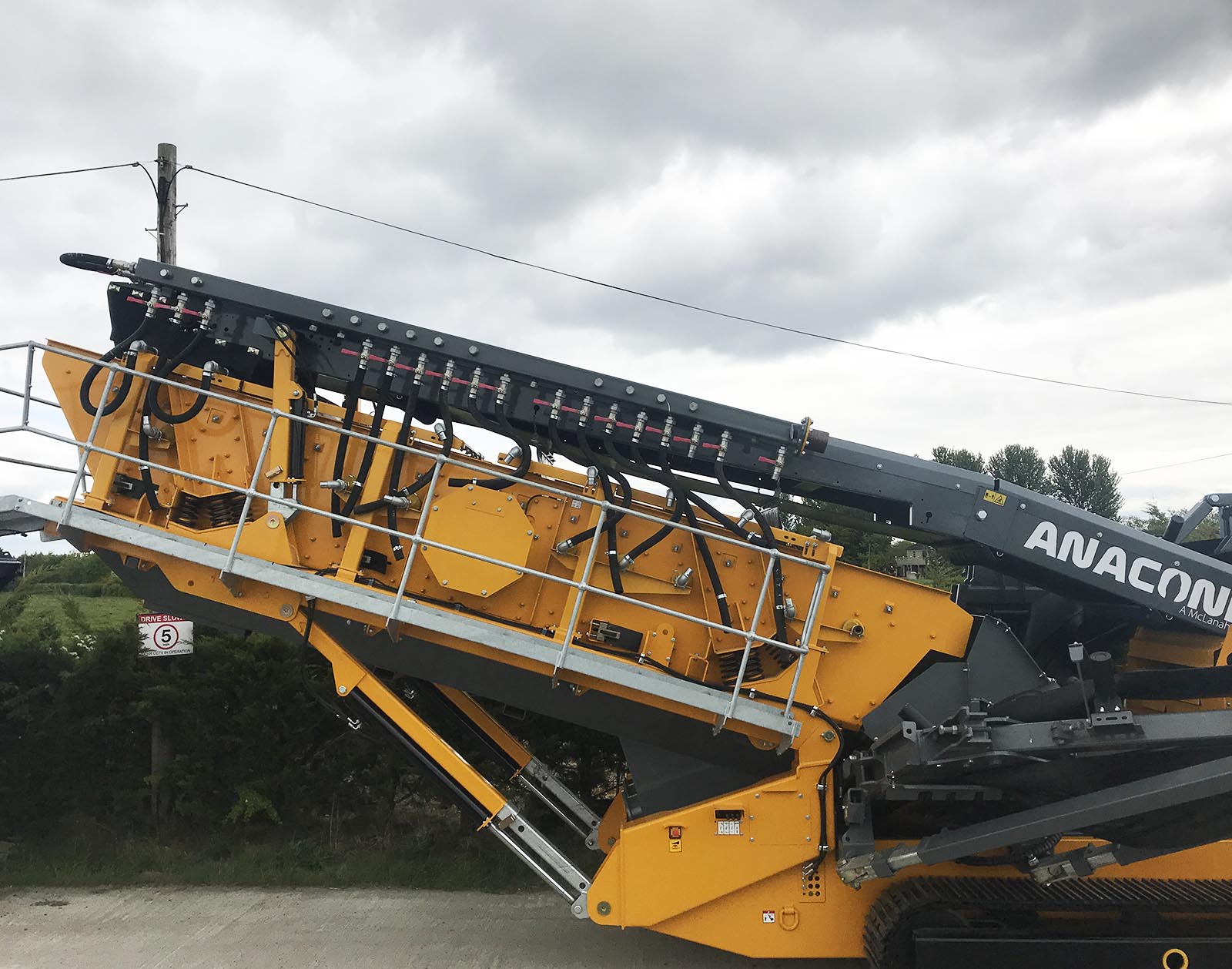

The Anaconda SR520 Rinsing Screen has been designed for high-volume primary washing applications.

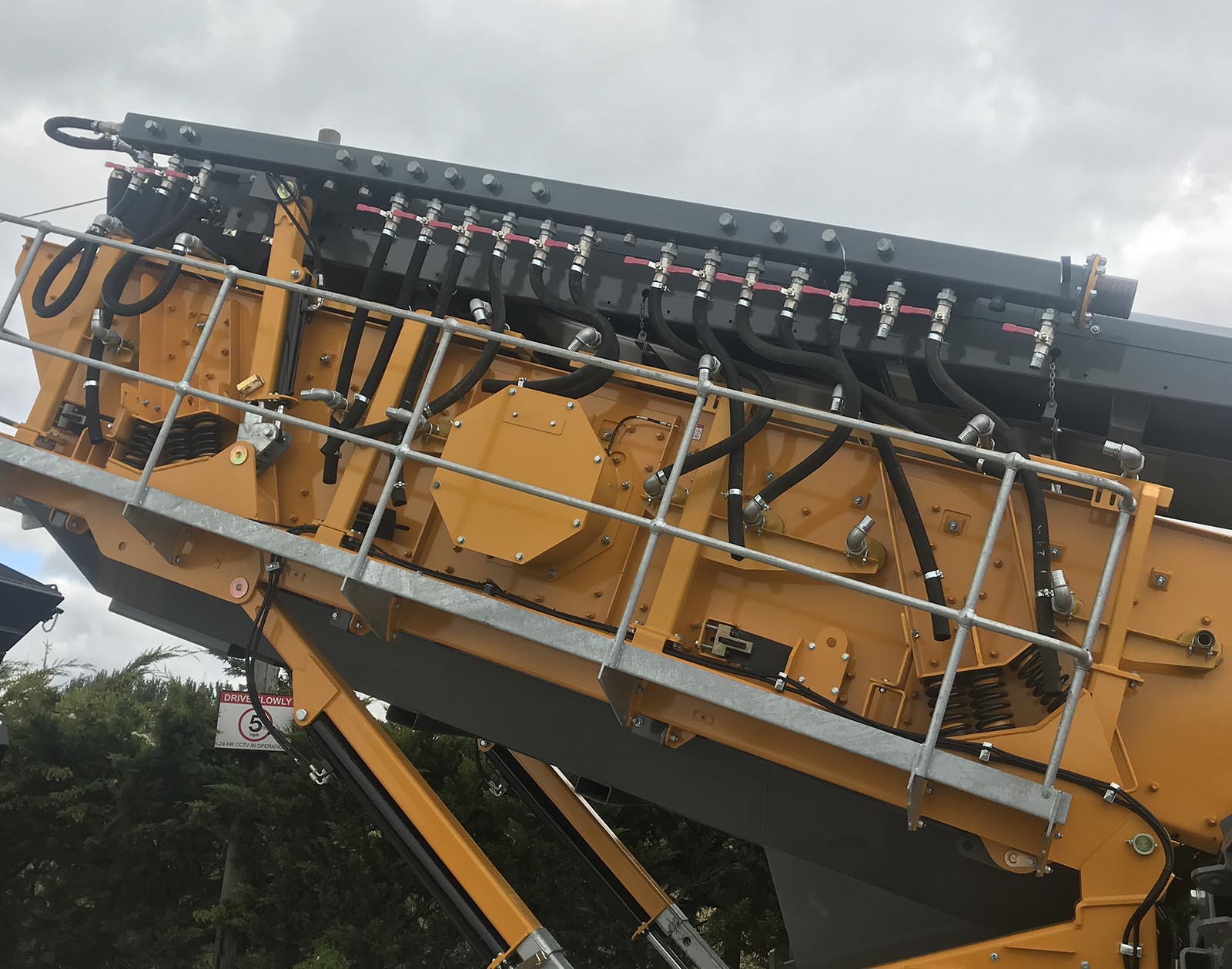

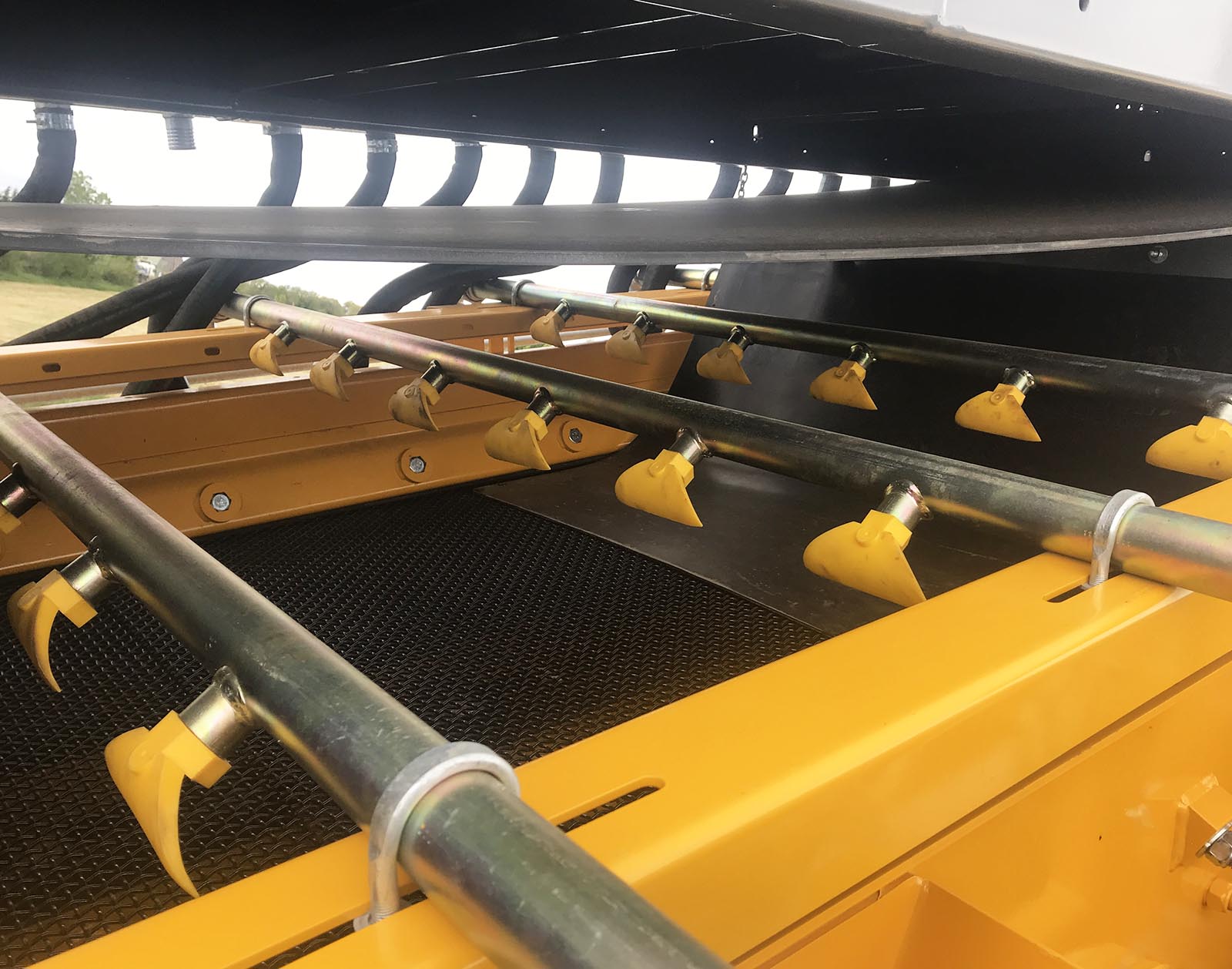

The SR520 Rinsing Screen can process up to 350 tph (385 US tph) and accept a max feed size of 125 mm (5”). The SR520 has a 4.3 x 1.5 m (20’ x 5’) 2 or 3-deck configuration and can stockpile up to 4 finished products. Fitted with both polymer and brass nozzles, the SR520 is a versatile solution that screens and washes materials in one high-performance unit. Operators can efficiently scalp away bulky material via its tipping grid prior to material processing.
| Model | Power Units | Emission Tier |
| CAT 4.4 | 96.5 kW (129 HP) | Tier 3 |
| JCB 444 DieselMAX | 120 kW (161 HP) | Tier 3 |
| JCB 444 EcoMAX | 129 kW (173 HP) | Tier 4 Final |
| CAT (dual-certified) | 110 kW (148 HP) | Stage V |
| JCB 444 EcoMAX | 129 kW (173 HP) | Stage V |
Tier 3/Stage 3a: Rest of World | Tier 4 Final: US, CA, JP, KR, AU (opt.) | Stage V: JCB – EU/UK; CAT – EU/UK/US
| Height | 2-Deck – 6.28 m 3-Deck – 6.28 m |
| Length | 19.80m |
| Width | 19.80m |
| Weight | 2-Deck – 31,640 kg 3-Deck – 38,720 kg |
| Hopper capacity | 8 m³ |
| Screen box angle | 22° – 34° |
| Height | 2-Deck – 20′ 7″ 3-Deck – 20′ 7″ |
| Length | 65′ |
| Width | 64′ 9″ |
| Weight | 2-Deck – 69,754 lbs 3-Deck – 85,362 lbs |
| Hopper capacity | 10.4 yd³ |
| Screen box angle | 22° – 34° |
