Trommel screens play a critical role in operations where separating materials by size and consistency is essential. From turning compost into nutrient-rich soil to cleaning aggregates for construction or processing mulch for landscaping, trommel screens offer a versatile solution for a wide range of material screening needs. Understanding how they work—and when to use them—can help ensure you’re getting the most efficient results for your application.



What is a Trommel Screen?

A trommel screen is a type of mechanical screening machine that uses a rotating drum to separate material by size. As the drum spins, lift bars turn the material over allowing smaller particles to fall through perforations while larger pieces continue along the length of the drum and exit at the end. Movement down the drum is achieved by either having a pitched variable angle on the drum or with a scrolled lift bar in the drum. It’s a straightforward concept and incredibly effective when handling sticky, moist or irregular materials.

Unlike vibrating or shaker screens (flat decks), trommels rely on rotation and gravity, not oscillation, to move and separate material. This makes them ideal for applications where flat deck screens might clog, blind or fail to properly break down the feed.



How Do Trommel Screens Work?

The key to a trommel screen’s success lies in its rotating drum, which tumbles the material. The motion helps loosen and break up clumps, allowing finer particles to pass through openings in the drum while larger pieces are carried to the discharge point.

There are two main drum styles, each with specific advantages:

  • Lift Bar Drums: Feature the drum pitched at an angle with internal bars that lift and drop the material as it spins—ideal for organics like compost, mulch or topsoil. This “lift and break” action enhances separation.
  • Scroll, or Rifled, Drums: Use an internal corkscrew design to gently roll lighter materials like plastics, paper or shredded waste through the drum. These are common in European-style recycling operations.

Pro tip: Lift bar drums typically offer more effective screening area (10:00 to 4:00 position on a clock face), while scroll drums focus on gentle movement to avoid tangling or binding.



When Should You Use a Trommel Screen?

Trommel screens are best suited for materials that are:

  • Moist or sticky (e.g. clay, compost)
  • Irregular or fibrous (e.g. mulch, shredded waste)
  • Difficult to process with traditional flat deck screens



Common applications include:

  • Topsoil screening
  • Compost and mulch processing
  • Landfill reclamation
  • C&D waste management
  • Recycling of plastics, paper and wood
  • Cleaning aggregate with high clay content

Trommels shine in these use cases because their tumbling motion prevents blockages, reduces screen blinding and often improves final product quality by physically breaking down material during screening.



How Trommel Screens Improve Efficiency

Trommel screens don’t just sort—they refine. By breaking up material as it rotates, a trommel can recover more fines (sellable product) in a single pass than a flat screen might after multiple runs.

In real-world scenarios, this means:

  • Less waste going to the waste pile
  • Higher recovery rates of usable, salable product
  • Reduced need for re-screening, saving time and labor costs

Trommel screens are also more forgiving of inconsistent material. Where other machines may require pre-processing or drying, a trommel can often take damp, mixed-content feeds and still deliver effective results.



A Note on Trommel Size and Setup

Trommel drums are typically sized in length and diameter (e.g. 6m x 2m), and most are pitched on a slight incline to aid material flow. Some designs allow adjustable angles and drum speeds to fine-tune performance for different feedstocks.

Typical best practices include:

  • One full material rotation per drum diameter
  • A 3:1 length-to-diameter ratio is ideal for thorough screening
  • Moisture-rich materials may require lower drum RPM to prevent paste buildup
  • Less is more – a slow controlled feed into the drum ensures the material is free to flow and clean efficiently which will ultimately yield a higher throughput with less fines material wastage into the overs pile



A Closer Look: The Anaconda Trommel Screens 

Anaconda has been a leader in trommel screen manufacturing for more than a decade, with two standout models built for different production levels.

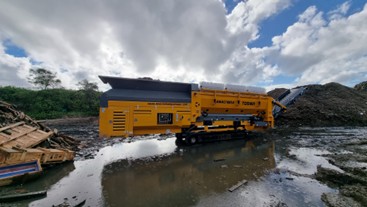

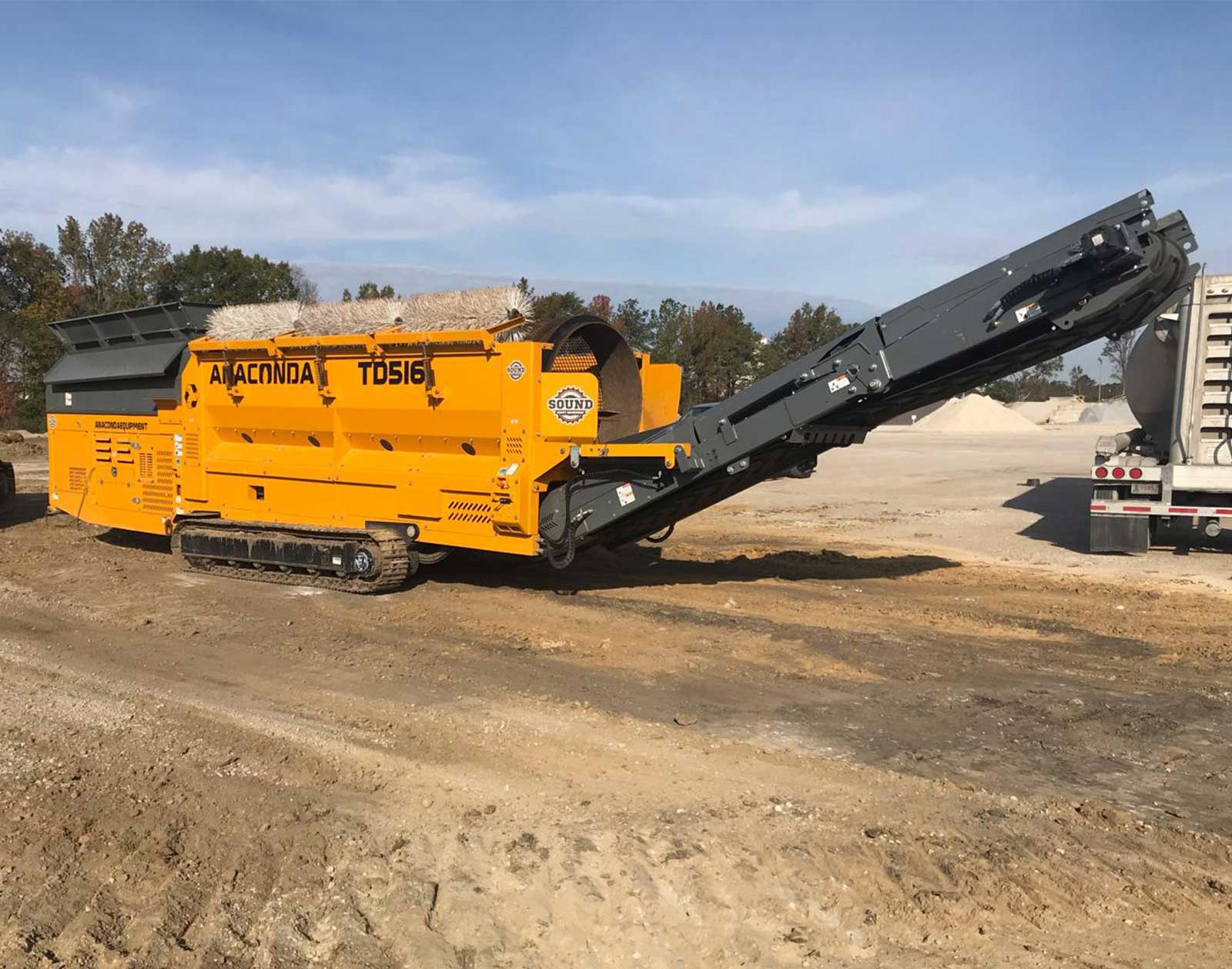

TD516R: Compact, efficient and ideal for smaller sites or budget-conscious operations

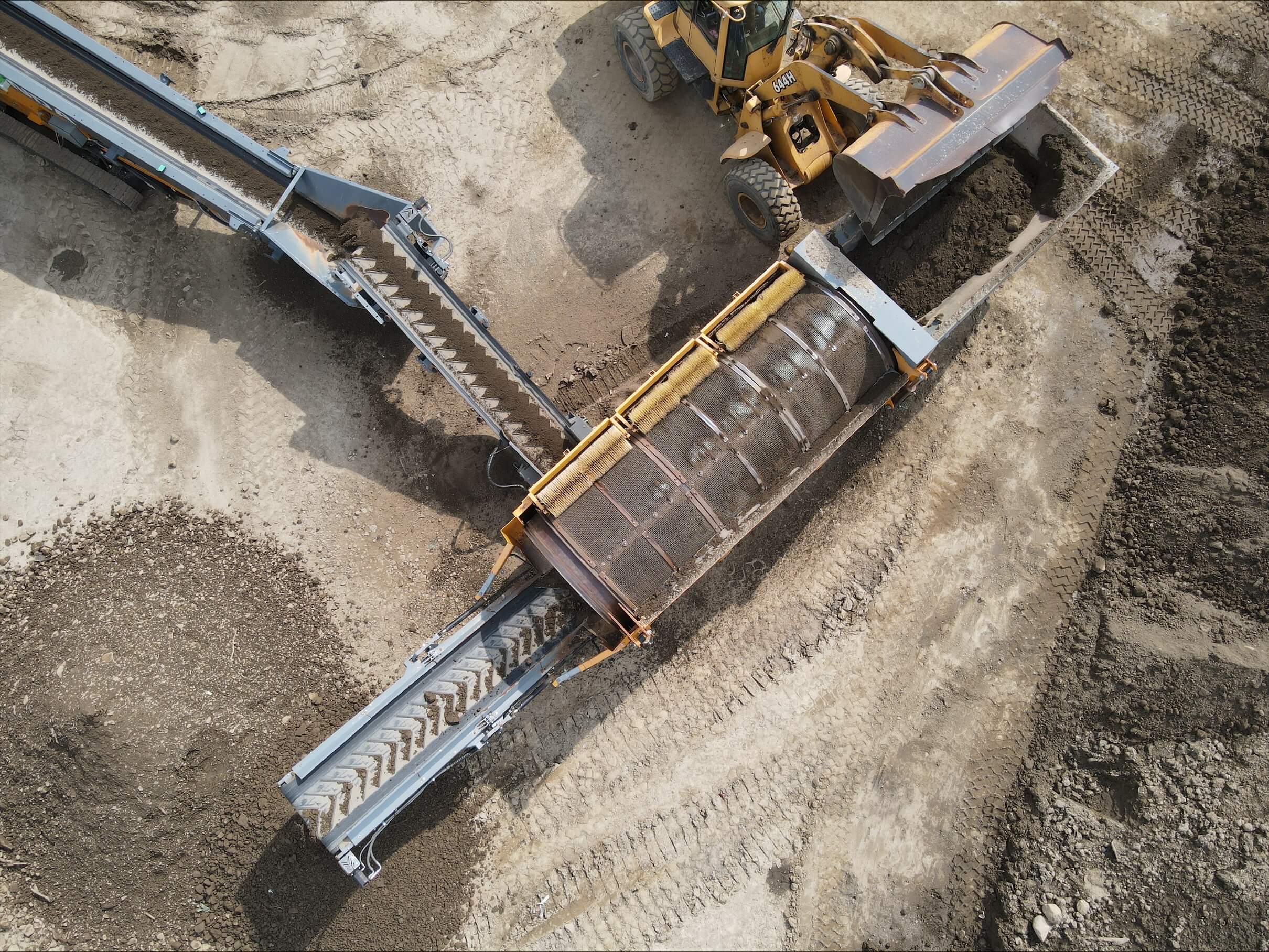

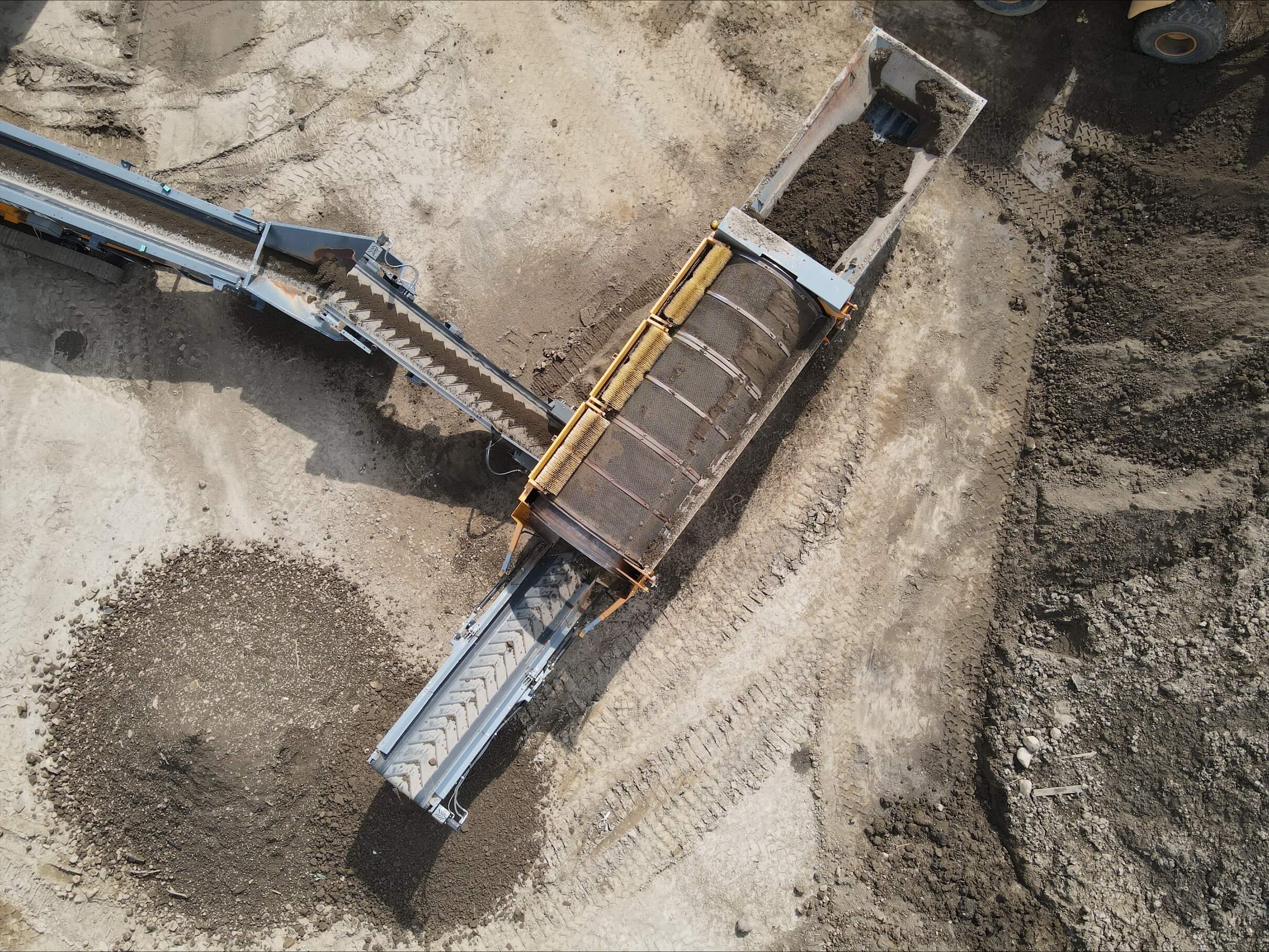

TD620: Higher-capacity machine with full hydraulic adjustments and roll-out drum access for faster maintenance and screen changes

Both machines are designed with ease of use and transport in mind—perfect for contractors or rental fleets working across diverse organic and recycling applications.
